Which masonry drill bit is right for the job?

Drilling into brick for a clothesline is a very different job to drilling into concrete pavers, slabs or reinforced concrete. The material, hole size and power tool all affect which drill bit will deliver the best result.

Not all masonry drill bits are designed for the same application. Choosing the right bit helps improve drilling performance, hole accuracy and tool life.

For everyday masonry jobs use Alpha Standard Masonry Drill Bits

For general masonry jobs around the home, Alpha Standard Masonry Drill Bits are the practical everyday choice.

These drill bits are ideal for common installation work such as:

• Fixing house numbers to brick letterboxes
• Installing brackets for pipes and conduits
• Drilling holes into brick, block and general masonry
• Preparing holes for plugs, anchors and screws

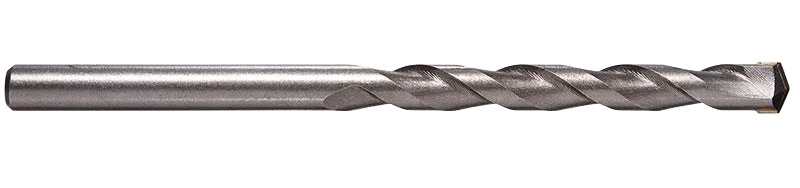

Alpha Masonry Straight Shank Drill Bits are available in sizes from 5 mm to 20 mm. They are manufactured from professional-grade materials and are suitable for both rotary and impact drilling applications.

Each bit features a tungsten carbide tip for durability and a straight round shank that fits standard drill chucks. To operate correctly, these drill bits need to be used in a corded or cordless drill that has an impact/hammer setting. Please note that the impact/hammer mode on a cordless drill is not the same as impact mode on an impact driver.

Hex shank and multi-purpose options are also available, giving users greater flexibility depending on the drill type and material being worked on.

For everyday masonry drilling where the material is not heavily reinforced or overly dense, this range provides a reliable and efficient solution.

For concrete, larger holes and reinforced concrete use Alpha SDS Drill Bits

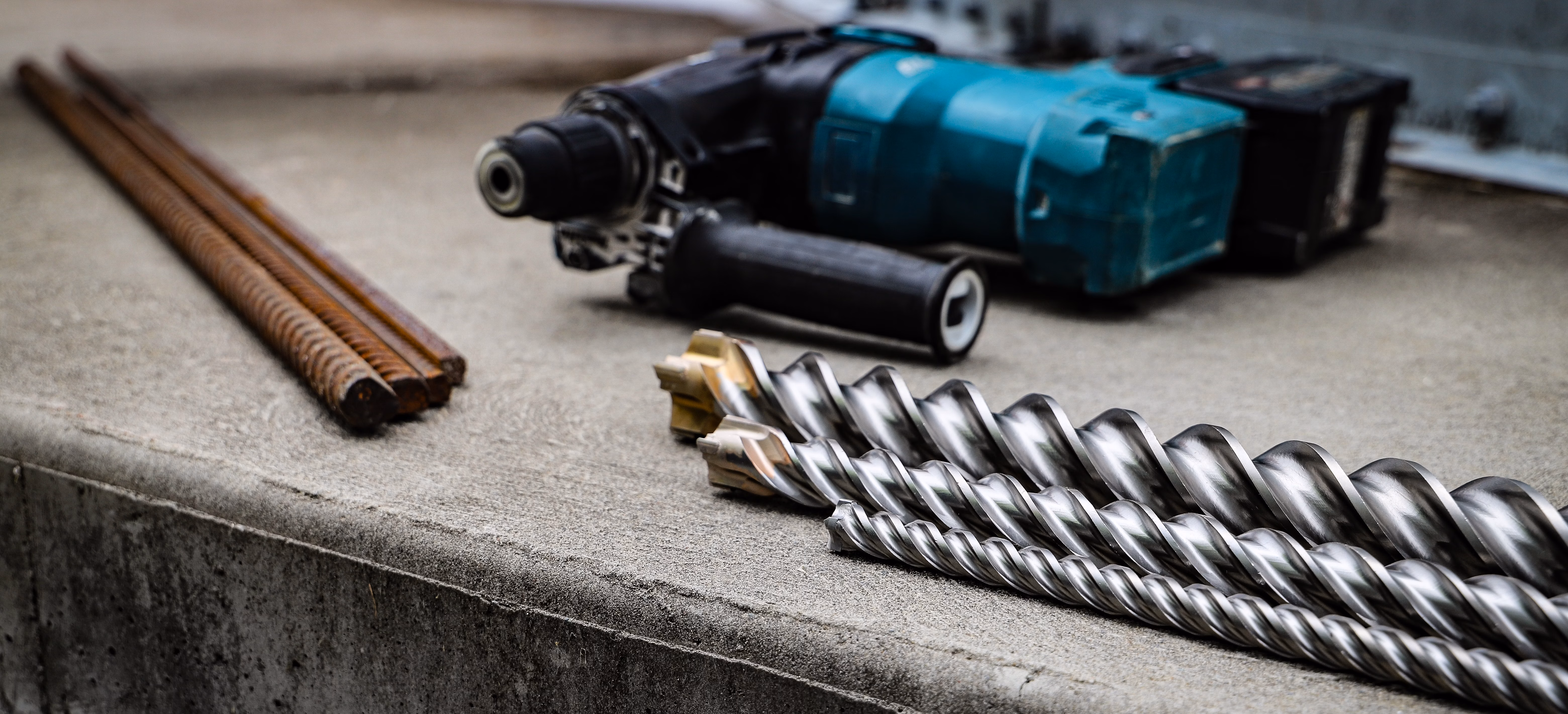

For tougher applications such as concrete, reinforced concrete and larger diameter holes, an SDS rotary hammer drill and SDS drill bit are the right combination.

Unlike a standard cordless drill, an SDS rotary hammer drill delivers higher impact energy and improved drilling performance in dense masonry and concrete.

Alpha SDS Drill Bits are designed for applications including:

• Concrete pavers
• Concrete slabs
• Reinforced concrete
• Driveways and foundations
• Hard masonry
• Permanent fixture installation
• Larger diameter holes

Alpha SDS Plus Zentro

Alpha SDS Plus Zentro Drill Bits are engineered for demanding concrete and masonry drilling applications from 5 mm to 32 mm.

Manufactured in Germany and PGM certified, SDS Plus Zentro drill bits are designed for accurate hole positioning and consistent performance.

Key features include:

• Solid carbide head with reinforced shoulders for improved durability and impact resistance
• Reinforced head design to help reduce jamming when drilling through rebar
• Efficient flute design for faster dust removal and improved drilling speed
• Up to 20% more holes per battery charge when used with battery-powered SDS rotary hammer drills

SDS Plus Zentro is well suited to reinforced concrete, concrete and masonry applications where reliability and drilling efficiency are critical.

Alpha SDS Max Zentro

When larger diameter holes are required, Alpha SDS Max Zentro Drill Bits are built for the task.

Covering sizes from 12 mm to 52 mm, SDS Max Zentro drill bits are designed for SDS max rotary hammer drills and heavy-duty drilling applications.

The focus is not necessarily harder material, but larger holes and higher-volume work.

Features include:

• German-engineered construction
• Secondary cutters to help protect the bit when encountering reinforcement
• Maximum energy transfer for efficient drilling performance
• Long service life in demanding applications

Alpha Reo Head SDS 4 Head Cut

For reinforced concrete drilling, the Alpha Reo Head SDS 4 Head Cut Drill is specifically designed for drilling through concrete with rebar.

Available from 5 mm to 16 mm, these German-manufactured and PGM-certified drill bits deliver reliable hole accuracy and long-lasting performance.

Key advantages include:

• Up to six times longer life in reinforced concrete compared to professional 4-cutter SDS drill bits
• Solid carbide head for fast and accurate drilling
• Head geometry designed to help minimise jamming in rebar
• Four-flute design for efficient dust removal

The power tool matters too

Choosing the right masonry drill bit also means matching it with the correct power tool.

For lighter household jobs, standard masonry straight shank drill bits can be used with standard drill chucks and many cordless drills (with hammer/impact mode).

For concrete, reinforced concrete and more demanding drilling applications, SDS rotary hammer drills are recommended.

• SDS Plus Zentro requires an SDS Plus rotary hammer drill
• SDS Max Zentro requires an SDS Max rotary hammer drill

Quick guide for choosing the right masonry drill bit
